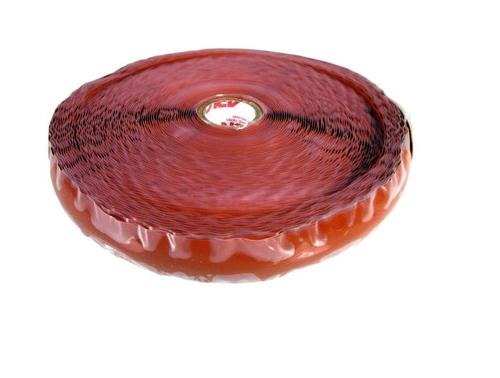

Arlon Silicones Technology LW401Rx-P0, as the name suggests, is part of their MOX-Tape series of fiberglass reinforced tapes. These self-fusing silicone rubber tapes incorporate a sinusoidal fiberglass fabric that provides controlled elongation and increased tear resistance. This item has a minimum elongation before fracture of 25 percent and has a minimum elongation before fracture of 15 percent. This reinforcement offers excellent mechanical characteristics while allowing the tape to conform to irregular shapes.
Upon request, this tape can be certified to the following specifications: MIL-I-46852C Type II and A-A-59163 Class 1, Type II.
- Resists moisture, oxygen, and ozone to assure continuous high insulation values
- Conforms smoothly when wrapped around complex forms
- Bonds to itself at room temperature within 24 hours
- Remains non-tacky to the touch and does not adhere to other surfaces, or substrates
- Insulates with single wrap, thereby reducing labor time and cost
- Dampens vibration and resists heat and mechanical shock as well as corona
- Inherently flame resistant and when burned forms a non-conductive ash
- SA & SB MOX-Tapes® provide a uniform thickness even around sharp edges. Fiberglass fabric, encapsulated inside the silicone rubber, prevents wicking and maintains high insulation resistance under high humidity conditions. These controlled stretch tapes provide a uniform insulation barrier
- All tapes are protected by a special interleaved liner
- Thermal Stability: 356°F/180°C
- Temperature Range: -65°F to 500°F (-54°C to 260°C)
- Volume Resistivity: 1013 ohm-cm min (ASTM D257)
- Self Adhesion: 2 ppi min (35 N/cm) (ASTMD2148)
- Hardness Range: 40-60 Shore A (ASTM D2240)
- Moisture Absorption: 09 percent (46 hrs in H2O at 70°F)
...
