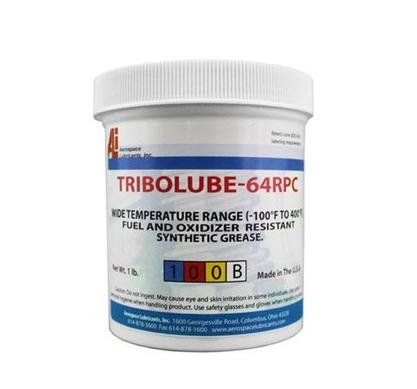

Aerospace Lubricants Tribolube 64RPA primary characteristic is that it has extremely low start run torques at -100°F, yet will operate at temperatures of 400°F for long periods of time. Tribolube-64 is nonreactive with strong acids, oxygen. fuels, and solvents. It is an excellent anti-wear, extreme pressure lubricant with long life. Although this lubricant is very inert, newly exposed rubbing surfaces of aluminum and magnesium may react with the greases under certain conditions.
Tribolube 64RPA is intended for use in small and large diameter ball, roller, needle, and plain bearings, threads, valves, gears, and screw actuators. It is compatible with most elastomers and plastic seals, gaskets and O-rings
PERFORMANCE TEST | TEST METHOD | CONDITION | TYPICAL VALUES |
Temperature Range | | | -100o to 400oF |
NLGI Number | | | |
Unworked Penetration | ASTM D-1403 | @ 77oF | 348 |
Worked Penetration | ASTM D-1403 | 60 Strokes | 343 |
Oil Separation | FED-STD-791 Method 321 | 30 hrs @ 250oF | 5.81% |
30 hrs @ 400oF | | | |
Evaporation | ASTM D-2595 | 22 hrs @ 250oF | 2.71% |
22 hrs @ 400oF | 10.11% | | |
Low Temperature Torque | ASTM D-1478 | @ -65oF, starting | 293 gm-cm |
60 min running | 195 gm-cm | | |
@-100oF, starting | 943 gm-cm | | |
60 min running | 176 gm-cm | | |
Copper Corrosion | FED-STD-791 Method 5309 | 24 hrs @ 212oF | 1b |
Load Wear Index | ASTM D-2596 | | 222.36 |
Last Non-seizure | Load/Wear Scar | 100 kg/ 0.57 mm | |
Last seizure | Load/Wear Scar | | |
Weld Point | Load | 800+ kg | |
Steel-on-Steel Wear | ASTM D-2266 | 1200 rpm, 40 kg, 1 hrs @ 167oF, 52100 steel | 0.80 mm |
1200 rpm, 40 kg, 1 hrs, @ 400oF 52100 steel | 0.91 mm | | |
High Temperature Performance | ASTM D-3336 | 10,000 rpm @ 400oF 5 lb. load | NA |
Film Stability & Steel Corrosion | Mil-G-27617D | 168 hrs @ 212oF | Pass |
Water Washout | ASTM D-1264 | 1 hr @ 105oF | 1.46% |
Resistance to Aqueous Solution | FED-STD-791 Method 5415 | 168 hrs @ 77oF | Pass |
LOX Impact Sensitivity | ASTM D-2512 | 20 impacts from 1,100 mm | No Reaction |
Fuel Stability | FED-STD-791 | @ 77oF | 0.21% |
Fuel Resistance | Method 5414 | 8 hrs @ 77oF | Pass |
Oxidation Stability | ASTM D-942 | 100 hours @ 212oF | 0 psi |
500 hours @ 212oF | 0 psi | |
